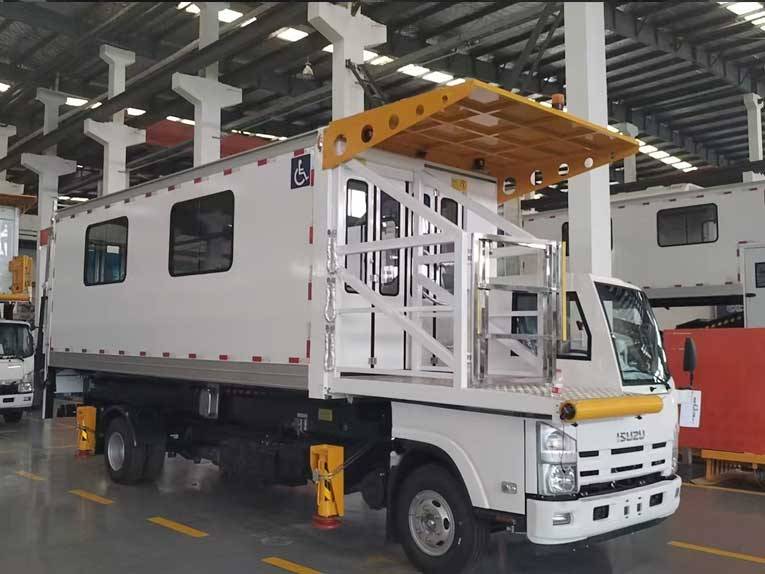

Disabled Passenger Lift (Ambulift)

Disabled Passenger Lift (Ambulift) chassis

1. Select the Qingling 700P Class II vehicle chassis (QL1080A8PAY)
Engine model: 4HK1-TC51

Maximum power: 141kw/2600/min

Maximum torque: 513Nm/1600r/min

Type: Water-cooled, turbocharged, intercooled, four-stroke diesel engine

Emission standard: National V standard

Transmission Move forward six gears and backward one gear

I: 6.720 II: 4.244 III: 2.580 IV: 1.540 V: 1.00 Ⅵ : 0.763 R: 6.823

3. Adopt a hydraulic power steering system.

4. It adopts a dual-circuit hydraulic braking system.

The Qingling QL1080A8PAY (700P) Class II automotive chassis features stable performance and an attractive appearance.

When the platform is raised, the vehicle cannot move.


Technical parameters of Disabled Passenger Lift (Ambulift)

Overall dimensions (length × width × height) : 9200mm× 2460mm × 3770mm

Internal dimensions of the box body (length × width × height) : 6350 mm×2200 mm×2100 mm

The telescopic distance of the telescopic platform is 600 mm

The moving distance of the mobile platform: 600 mm

The height of the front platform from the ground: 1400 mm - 5800mm

The height of the box body from the floor: 1500-5900mm

The height of the rear platform from the ground: 0mm - 1500mm

Wheelbase: 5200 mm

Approach Angle: 14°

Departure Angle: 14°

The outer diameter of the channel circle: 20,500mm

The total weight of the vehicle is 11,250 kg

Maximum load capacity of the box b
