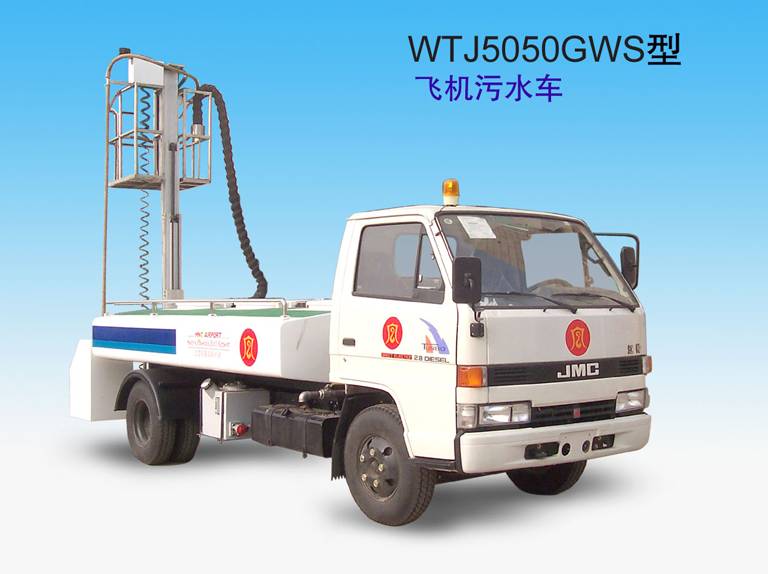

JSTY5050GWS Toilet Service Trucks can be widely used for A300, A310, A318, A319, A320, A340, B707, B727, B737, B747, B757, B767, B777, DC8, 1L-18, 1L-62, MD11, MD80 and so on. -62, MD11, MD80 and other models.
The chassis cab is flat head, single row seat, two-door type, with a crew of 2; drive type is 4×2, fresh water tank volume is 1.0m³, sewage tank volume is 2.0m³, water supply flow rate is ≥150min; water supply pressure is 0.345Mpa, sewage suction flow rate is 600L/min, lifting working platform height from the ground is 400mm~2800mm.
Total length (mm):6550
Total width (mm):1900
Total height (mm):2150
Wheelbase (mm):3360
Wheelbase (front/rear) (mm): 1385/1425
Front overhang (mm): 1090
Rear Overhang (mm): 2100
Approach angle (°): 20
Departure Angle (°): 6
Minimum Ground Clearance (mm): 200
Total mass (kg): 3600
Gross mass (kg): 6630
Outer diameter of passage circle (mm): 15500
Maximum traveling speed (km/h): 80
Sewage tank volume (L): 2000
Fresh water tank volume (L): 1000
Water supply flow (L/min): ≥150
Water supply pressure (Mpa): 0.25~0.345
Minimum height of working platform (mm): 400
Maximum height of working platform (mm): 3000
Sewage tank material: stainless steel plate 0Cr18Ni9Ti/4
Vacuum sewage tank material: stainless steel plate 0Cr18Ni9Ti/4
