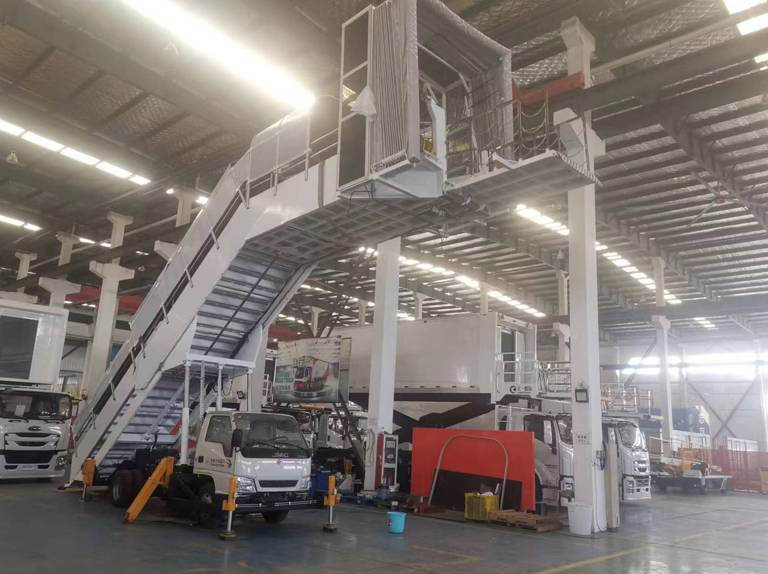

Passenger Boarding Stairs

Main technical performance parameters of passenger boarding ladder

Maximum number of passengers (persons): 60

Fixed ladder steps: 14

Slide rungs: 13 rungs

Flip ladder rungs: 2 rungs

Center distance from the front and rear support feet to the middle diagonal support (mm): 2337, 3700

Ladder size: tread width (mm): 1500; tread depth (mm): 300; tread height (mm): 180

Inside width of ladder body(mm): 1500

Outer width of ladder body(mm):1790

Minimum platform height above ground(mm):1650

Maximum platform height above ground(mm):6360

Soft connection platform overturning amount (°): -15 ~ +15

Hydraulic system pressure (Mpa): 12

Hydraulic oil tank volume (L): 93

Voltage (V): 12
