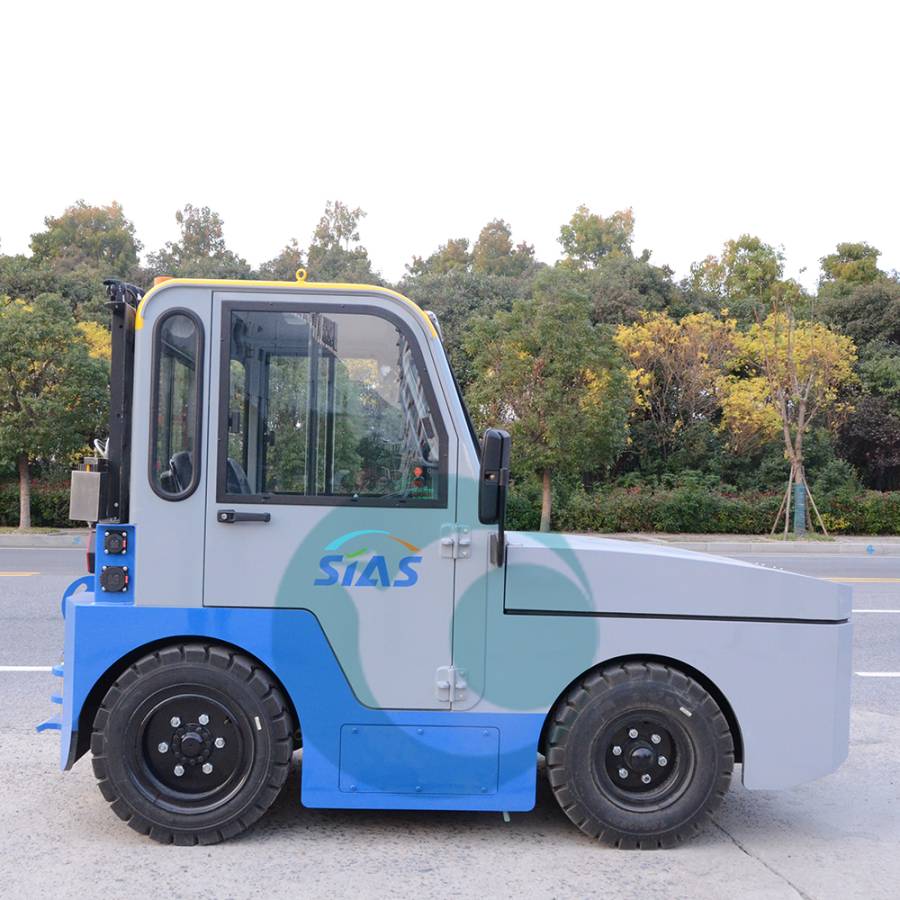

Baggage and Cargo Tractors

Baggage and Cargo Tractors The whole vehicle arrangement type is closed, rear-mounted cab (optional front-mounted), front and rear windshields can be opened, with a crew of 2, a maximum speed of 30km/h, a maximum tractive force of 35kN, a rated towing weight of 35,500kg, and a driving range of 360km on a single charge.


Technical parameters:

Overall length mm: 3130

Overall width mm: 1440

Overall height mm: 1980

Wheelbase mm: 1610

Approach angle (°): 20

Departure angle (°): 21

Front wheelbase mm: 1270

Rear wheelbase mm: 1215

Front overhang mm: 780

Rear overhang mm: 740

Minimum ground clearance mm: 145

Min. turning radius mm: 3500

Maximum speed km/h: 30

Gross mass kg: 3750

Maximum tractive effort kN: 35

Maximum towing mass kg: 35,500

Rated traction force kN: 12

Driving range on one charge km: 360
