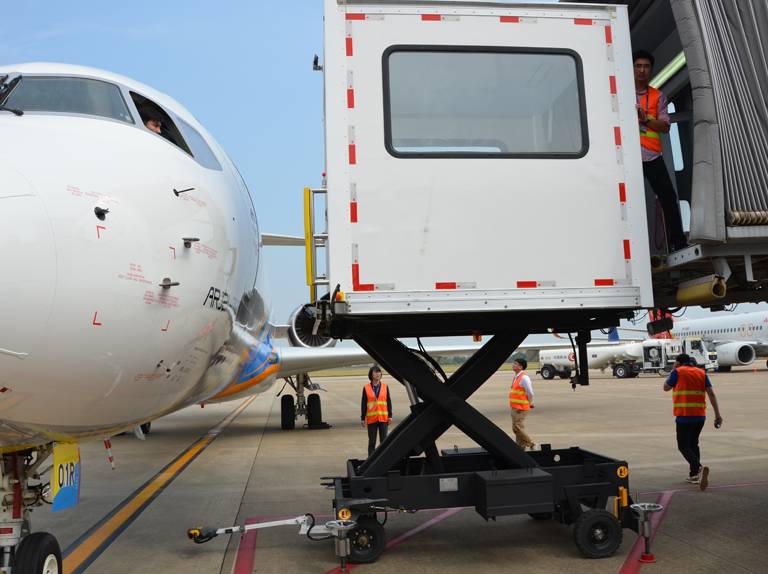

The Passenger boarding bridge is a non-motorized boarding bridge aid. The boarding bridge auxiliary equipment is 2250 (front) ~ 2550mm (back) above the ground, suitable for ARJ21 and other small series of passenger aircraft through the boarding bridge, and can be used as a lifting platform for the work of the crew.
Passenger boarding bridge technical parameters
Total length mm: 2980
Total width mm: 2500
Total height mm: 3360
Maintenance weight kg: 2700
Wheel base (front/rear) mm: 900/1550
Wheelbase mm: 1930
Maximum speed km/h: 2.7
Channel circle Outer circle diameter mm: 6000
Minimum ground clearance mm: 95
Rated load kg: 1500
Test temperature condition ℃ : -20-50
Uniform load N/m2:3000
Platform lifting range mm: 960-2325
Maximum travel of the telescopic platform mm: 500
Maximum speed km/h: 2.7
