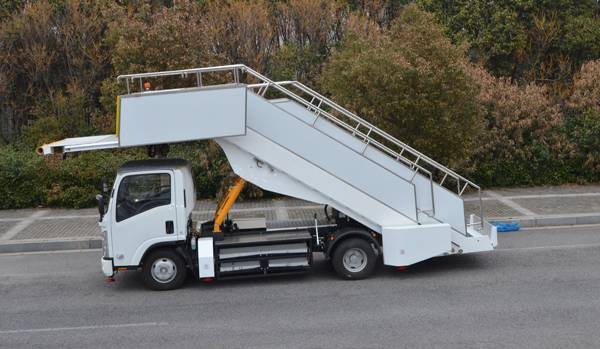

Aircraft Passenger Steps for Airports Outrigger I

Lift height range of passenger elevator: 2400～5800mm

Platform size (L×W): 3300×2810mm

Size and number of steps: Sliding ladder (L×W×H): 285×1500×192mm, 12 steps;

                                 Fixed ladder (L×W×H): 285×1500×192mm, 15 steps;

Maximum angle of inclination of the ladder body: 38.5°.

Minimum ground clearance: 200 mm

Outer diameter of passage circle: 18200 mm

Wheelbase ：3400 mm

Front/rear wheelbase: 2000 mm

Overall dimensions (L×W×H): 7770mm×2400mm×3650mm

Vehicle mass: 6500kg

Rated load: (100 persons)

Load per step: 225kg (3 persons)

Front axle load: 3500kg (narrow platform), 3600 (wide platform)

Rear axle load: 3000kg (without canopy)

Maximum speed: 30km/h

Minimum stabilized speed: 0.5km/h

Range Small airports: 121km+61 trips

               Large airports: 124km+60 times

               Medium-sized airports: 124km+62 times
